Automotive Embedded Systems Architecture Explained
Automotive Embedded Systems Architecture Explained
A practical guide to understanding how sensors, ECUs, communication networks, gateways, control software, diagnostics, and cloud services work together inside a modern vehicle.
Introduction
A modern vehicle is a distributed embedded system. Dozens of electronic control units communicate with each other while sensors continuously provide information and actuators execute control commands.
An engine ECU, transmission ECU, body controller, airbag ECU, battery management system, ADAS controller, instrument cluster, gateway and telematics control unit each have different responsibilities. The vehicle architecture defines how these systems are connected and how information moves between them.
Understanding the architecture helps an engineer answer practical questions. Where does a sensor signal enter the system? Which ECU processes it? Which network carries the information? Where does a gateway route the message? What happens when a message disappears?
Why Automotive Architecture Matters
ECU Integration
An ECU rarely operates alone. Architecture defines which ECU owns a function, which ECU consumes the data, and which network connects them.
Communication
CAN, CAN FD, LIN, FlexRay and automotive Ethernet serve different communication requirements. Architecture determines where each network fits.
System Debugging
A network trace often reveals only one part of a fault. Engineers need the complete path from input, through ECU processing, to network transmission and final output.
What Is Automotive Embedded Systems Architecture?
Automotive embedded systems architecture describes how hardware, embedded software, electronic control units, communication networks, sensors, actuators, gateways and external systems are organized and connected inside a vehicle.
The architecture defines more than physical wiring. It also defines functional responsibilities, communication paths, software layers, data ownership, timing requirements, diagnostics and security boundaries.
Hardware Architecture
Microcontrollers, microprocessors, memory, power electronics, transceivers, sensors, actuators and communication interfaces.
Software Architecture
Application software, basic software, operating system services, communication stacks, diagnostics, drivers and middleware.
Network Architecture
CAN, CAN FD, LIN, FlexRay, automotive Ethernet and gateway paths connecting different vehicle domains.
High-Level Vehicle Architecture
A simplified vehicle architecture starts with the physical environment. Sensors measure vehicle conditions. ECUs process those measurements. Networks transport information. Actuators execute commands. Gateways connect different network segments.
How Data Moves Through a Vehicle
Consider a simple engine control example. A sensor measures a physical quantity. The corresponding ECU receives the electrical signal, converts it into a usable value, executes control logic and sends information to other ECUs when required.
Major Components of Automotive Embedded Architecture
Sensors
Sensors convert physical conditions such as temperature, pressure, speed, position, acceleration and rotation into electrical signals that an ECU processes.
ECUs
An Electronic Control Unit combines processing hardware, memory, communication interfaces and embedded software to perform a defined vehicle function.
Communication Networks
Vehicle networks provide the communication paths used to exchange signals, diagnostic messages, control information and larger data streams.
Gateways
A gateway connects network segments or domains and routes information between them according to configured rules.
Actuators
Actuators convert ECU commands into physical actions such as controlling a motor, valve, relay, brake mechanism or other vehicle mechanism.
Diagnostic Systems
Diagnostic systems allow engineers and service tools to identify faults, read ECU information, execute diagnostic services and validate vehicle functions.

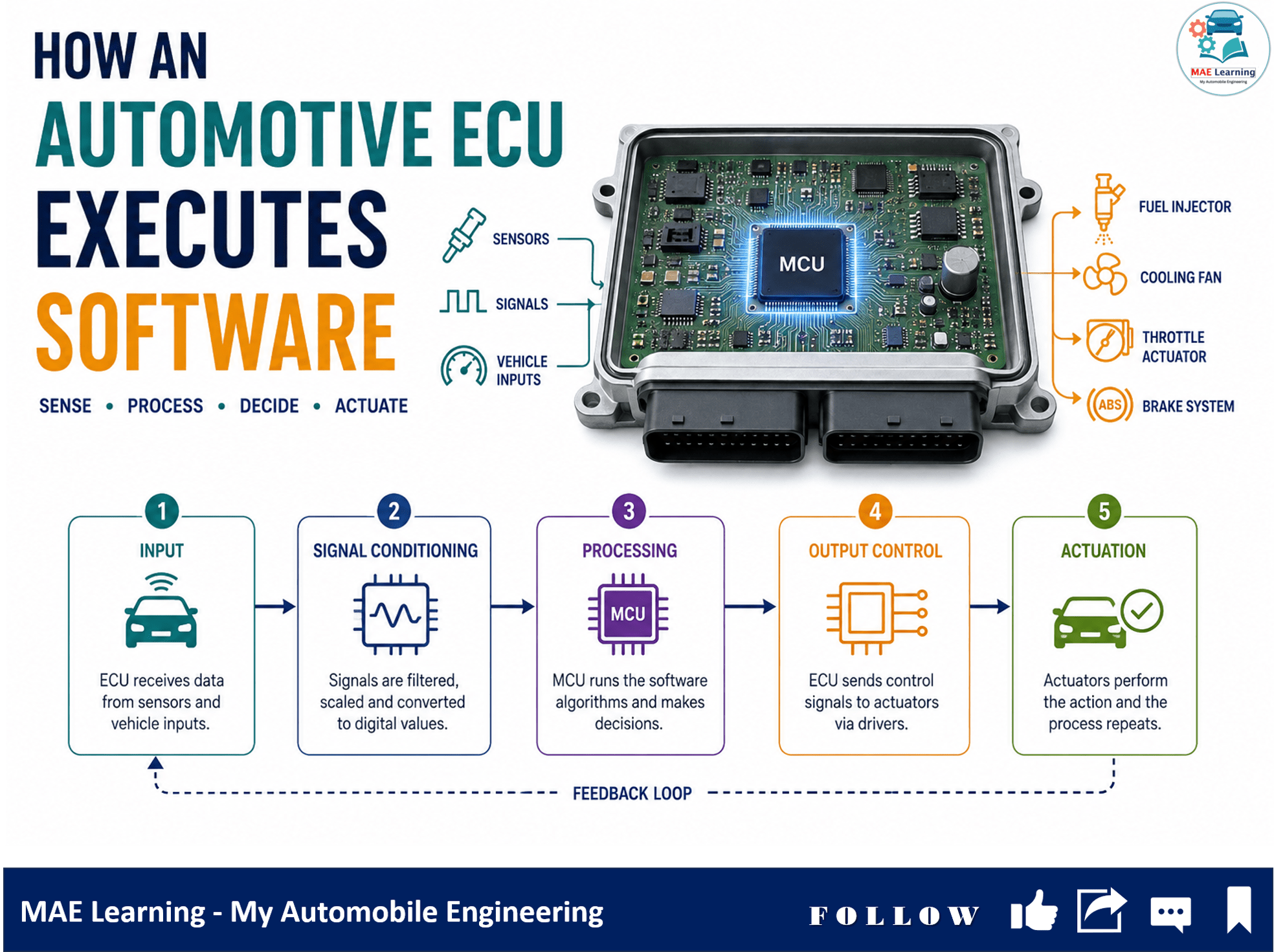

Inside an Automotive ECU
An ECU is more than a microcontroller. A production ECU usually contains processing hardware, memory, communication interfaces, input/output circuits, power management and embedded software.
Automotive ECU Software Architecture
ECU software is commonly organized into layers. The exact structure depends on the ECU platform, OEM architecture, supplier design and software stack. AUTOSAR Classic and AUTOSAR Adaptive provide standardized approaches for different classes of automotive systems.
Automotive Communication Networks
Different vehicle networks solve different engineering problems. Engineers select a network based on bandwidth, timing, topology, cost, robustness, synchronization, diagnostics and application needs.
| Network | Typical Role | Key Characteristic | Example Application |
|---|---|---|---|
| LIN | Low-cost local communication | Low complexity and cost | Body and comfort functions |
| CAN | ECU communication | Robust multi-node control network | Powertrain, body, chassis |
| CAN FD | Higher payload and throughput | Larger payload than Classical CAN | Modern ECU communication |
| FlexRay | Deterministic communication | Time-triggered and event-triggered communication | Selected legacy or specialized systems |
| Automotive Ethernet | High-bandwidth vehicle networking | High data throughput | ADAS, infotainment, diagnostics |
Domain-Based Vehicle Architecture
A domain architecture groups ECUs according to vehicle functions. Common domains include powertrain, chassis, body, infotainment, ADAS and vehicle access. A domain controller coordinates multiple functions within a domain.
Powertrain Domain
Controls functions related to propulsion. Depending on the vehicle, this includes engine management, transmission control, motor control and related energy management.
Chassis Domain
Handles vehicle dynamics functions such as braking, steering, suspension and stability-related control systems.
Body Domain
Controls functions such as lighting, windows, locks, seats, wipers and other body electronics.
ADAS Domain
Processes data from cameras, radar and other sensors to support driver assistance functions and vehicle perception.
Infotainment Domain
Handles displays, audio, connectivity, navigation and user-facing information systems.
Gateway / Central Vehicle Controller
Provides communication paths between domains and often performs routing, diagnostics, network management and security-related functions.
From Domain Architecture to Zonal Architecture
Vehicle electrical and electronic architectures continue to evolve. Traditional designs often contain many function-specific ECUs. Domain architectures group functions. Zonal architectures group electronics according to physical vehicle areas and connect those zones to central computing resources through high-bandwidth networks.
ECU-to-ECU Communication Example
Suppose one ECU calculates vehicle speed and another ECU needs the value for its own function. The source ECU publishes the relevant signal through the vehicle network. The receiving ECU interprets the signal using its configured message and signal definition.
In a real project, engineers also verify message identifiers, signal position, signal length, byte order, scaling, offset, cycle time, timeout behavior and network configuration.
Signal Processing Inside an ECU
Sensor Input
A physical sensor generates an electrical signal representing a vehicle parameter such as pressure, temperature, speed or position.
Signal Conditioning
Hardware and software condition the input before the application uses it. Depending on the sensor, this might involve filtering, conversion, plausibility checks or analog-to-digital conversion.
Application Processing
The ECU application uses the processed signal inside control algorithms or decision logic.
Network Transmission
If another ECU requires the information, the application or communication stack prepares the corresponding network message.
Actuator Command
The control result reaches an actuator through the relevant ECU hardware interface and electrical driver.
Diagnostics Within Vehicle Architecture
Diagnostics provides a separate communication path into the ECU software architecture. A diagnostic tester sends a request through a suitable vehicle network. The ECU receives the request, processes the diagnostic service and sends a response.
Cloud and OTA Connectivity
Connected vehicles extend the embedded architecture beyond the vehicle. A Telematics Control Unit, often called a TCU, provides communication between the vehicle and external backend services.
The exact architecture depends on the vehicle platform and OTA design. Security controls, software validation, campaign management and recovery mechanisms form important parts of production OTA systems.
Architecture Engineering Parameters
These values represent architecture categories rather than a universal production specification. Actual implementations vary between vehicle platforms.
Practical Example: Accelerator Pedal to Torque Request
Consider a simplified propulsion control example. The accelerator pedal position is measured by pedal position sensors. The powertrain control software evaluates the request along with other vehicle conditions. The resulting torque request participates in the control strategy and may be communicated to other ECUs.
Input → Processing → Output
A production implementation contains additional checks and control dependencies. The example demonstrates the architectural relationship between physical inputs, ECU software and vehicle control outputs.
Engineering Considerations
Timing
Check task execution time, message cycle time, response time, timeout values and end-to-end timing requirements.
Data Integrity
Check counters, checksums, CRCs, signal validity, plausibility checks and timeout behavior where applicable.
Network Load
Message frequency and payload size affect network utilization. Architecture reviews should consider expected traffic and bandwidth requirements.
Memory
ECU software must fit within available RAM, flash and other memory resources while meeting functional requirements.
Diagnostics
Diagnostic services, fault monitoring, diagnostic trouble codes, sessions and communication paths should align with the ECU design.
Security
Connected and diagnostic interfaces require appropriate security mechanisms based on the vehicle architecture and threat model.
Common Mistakes Engineers Make
- Treating the ECU as an independent component without understanding the network and system dependencies.
- Debugging an application issue without checking whether the input signal reached the ECU correctly.
- Assuming a CAN message exists because the signal appears in a software database.
- Ignoring message cycle time, timeout handling and network load.
- Mixing up a physical sensor signal, an internal ECU signal and a network signal.
- Treating gateway routing as transparent without checking the configured source and destination paths.
- Checking only the application software when the fault originates from hardware, network configuration or communication drivers.
Troubleshooting Automotive Architecture Issues
Start With the Symptom
Define exactly what fails. For example, a signal is missing, an actuator does not respond, a diagnostic request times out, or another ECU receives an incorrect value.
Check Power and Hardware
Verify ECU power, ground, wiring, connectors, transceivers, sensors and actuator interfaces before assuming a software fault.
Capture Network Traffic
Use a suitable network analysis tool to verify message IDs, timing, payload, signal values, counters and error conditions.
Check Gateway Routing
If communication crosses network segments, verify gateway routing and the expected source and destination paths.
Trace ECU Software
Follow the signal through drivers, communication services, application logic and output interfaces.
Validate the Fix
Repeat the original test, verify the network trace and confirm the ECU output under normal and fault conditions.
Architecture Debugging Flow
Traditional, Domain and Zonal Architectures
| Characteristic | Traditional ECU-Centric | Domain Architecture | Zonal Architecture |
|---|---|---|---|
| Organization | Function-specific ECUs | Functions grouped by domain | Electronics grouped by physical zone |
| Communication | Multiple network segments | Domain networks and gateways | High-bandwidth backbone plus local connections |
| Computing | Distributed across many ECUs | More concentrated in domain controllers | More centralized computing with zonal controllers |
| Wiring | Potentially complex | Reduced through domain grouping | Designed around physical zones and backbone connections |
| Typical Engineering Focus | ECU function and network integration | Domain integration and controller coordination | Central compute, zone controllers and high-speed networking |
Tools Engineers Use to Understand and Debug Architecture
CAN Analysis Tools
Used to inspect CAN and CAN FD traffic, message identifiers, payloads, signal values, timing and network behavior.
Diagnostic Testers
Used to send diagnostic requests, read ECU data, execute services and analyze diagnostic responses.
Oscilloscopes
Useful for inspecting electrical signals, timing, voltage behavior and physical-layer problems.
Bus Analyzers
Help engineers capture and analyze network communication across automotive communication systems.
HIL Systems
Hardware-in-the-loop systems provide controlled test environments for ECU validation against simulated vehicle conditions.
Debuggers
Microcontroller and software debuggers help engineers inspect memory, variables, execution flow and application behavior.
Automotive Embedded Architecture Interview Questions
It describes how vehicle ECUs, embedded software, hardware, communication networks, gateways, sensors, actuators and external systems are organized and connected to implement vehicle functions.
An ECU processes inputs, executes embedded software, communicates with other systems and controls outputs for a defined vehicle function.
A gateway connects different vehicle network segments and routes selected information between them according to the vehicle communication architecture.
CAN FD extends Classical CAN with a larger data payload and supports a faster data phase, subject to the physical and network implementation.
Automotive Ethernet provides higher-bandwidth networking for applications such as ADAS data paths, infotainment, diagnostics and vehicle backbones.
Domain architecture groups functions by vehicle domain. Zonal architecture groups electronics according to physical vehicle areas and connects local zone controllers with central computing resources.
Start with the physical and network layers. Check message presence, identifier, cycle time, payload, signal decoding, gateway routing, ECU configuration and application processing.
A fault might originate in the sensor, wiring, ECU input processing, application software, network communication, gateway routing or receiving ECU. The complete path helps isolate the fault.
Key Takeaways
Frequently Asked Questions
Conclusion
Automotive embedded systems architecture is the foundation behind modern vehicle electronics. Sensors generate information. ECUs process that information. Embedded software implements vehicle functions. Networks move data between systems. Gateways connect different parts of the vehicle. Actuators convert decisions into physical actions.
As vehicle platforms move toward domain and zonal architectures, engineers need to understand both ECU-level implementation and complete vehicle-level data paths.
For practical debugging, always follow the signal. Start at the physical input. Check ECU processing. Inspect network communication. Verify gateway routing. Then check the receiving ECU and final output.
